Manicotto2

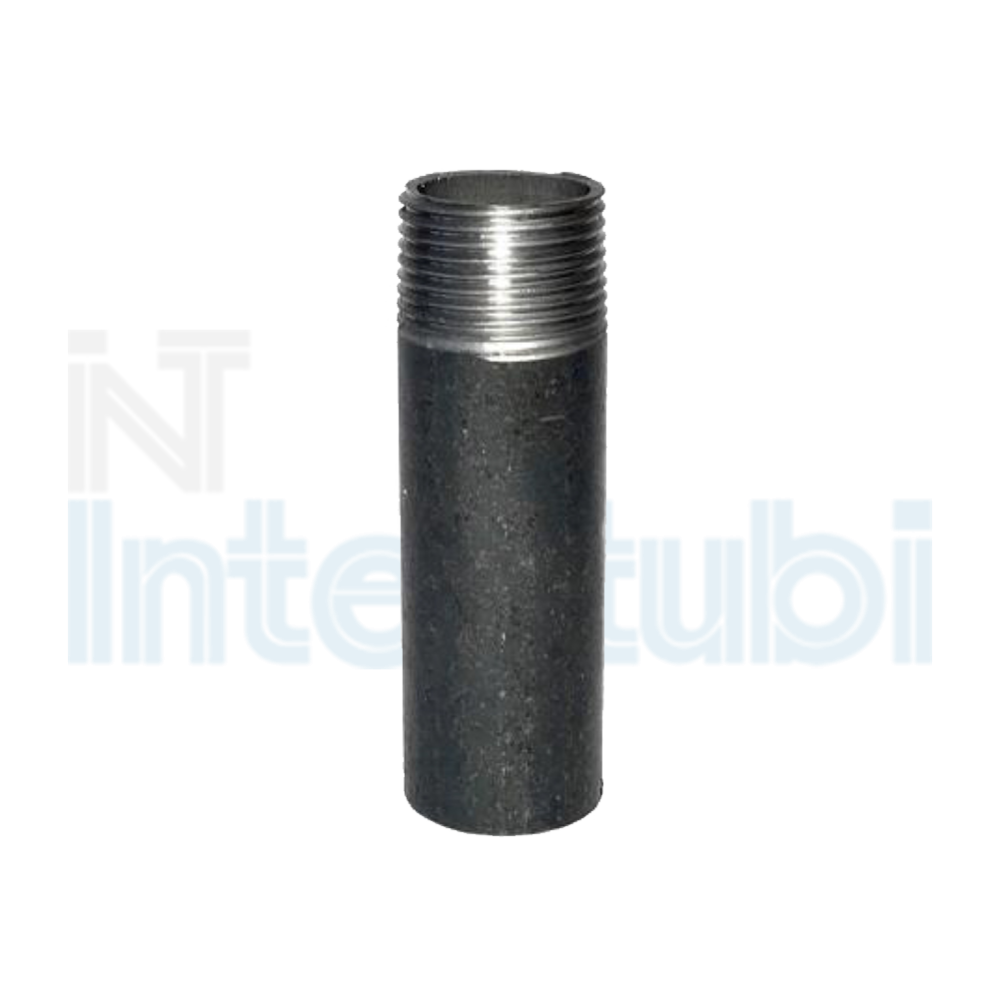

Carbon steel coupling

TECHNICAL INFORMATION:
Made from pipes welded
Dimensions and tolerances type UNI EN 10255 Thread: according to EN 10226-1 (EX ISO 7-1) Carbon steel

Certificates EN 10204/2.1

Welding nipple with other lengths on request

Manicotto2

Carbon steel coupling

TECHNICAL INFORMATION:
Made from pipes welded
Dimensions and tolerances type UNI EN 10255 Thread: according to EN 10226-1 (EX ISO 7-1) Carbon steel

Certificates EN 10204/2.1

Welding nipple with other lengths on request

Size mm

3/8"

1/2"

3/4"

1"

1 1/4"

1 1/2"

2"

2 1/2"

3"

4"

Ø 1

17,2

21,4

26,7

33,4

42,2

48,3

60,4

73,1

88,9

114,3

A

12

15

17

20

21

21

26

28

31

35

L

30

35

40

40

50

50

50

60

70

80

SP/THK

2,3

2,77

2,87

3,38

3,56

3,68

3,91

5,16

5,49

5,87
