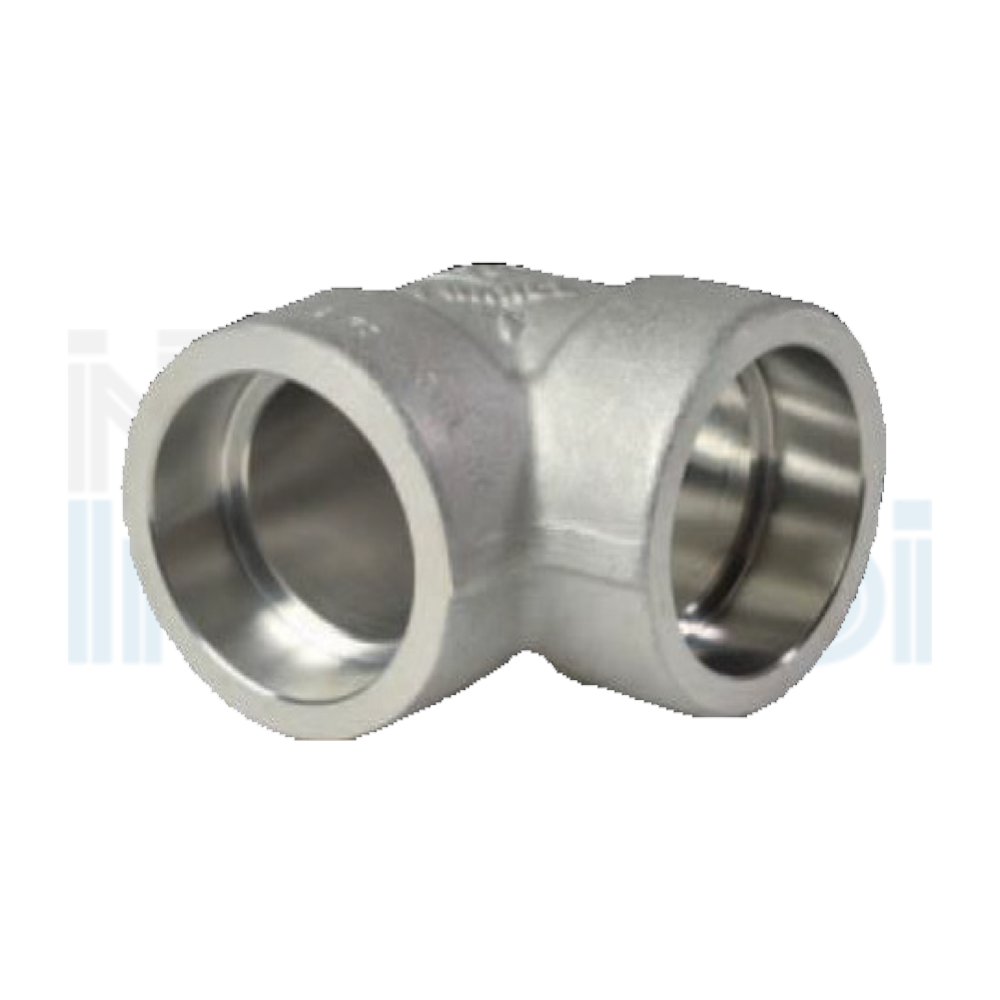

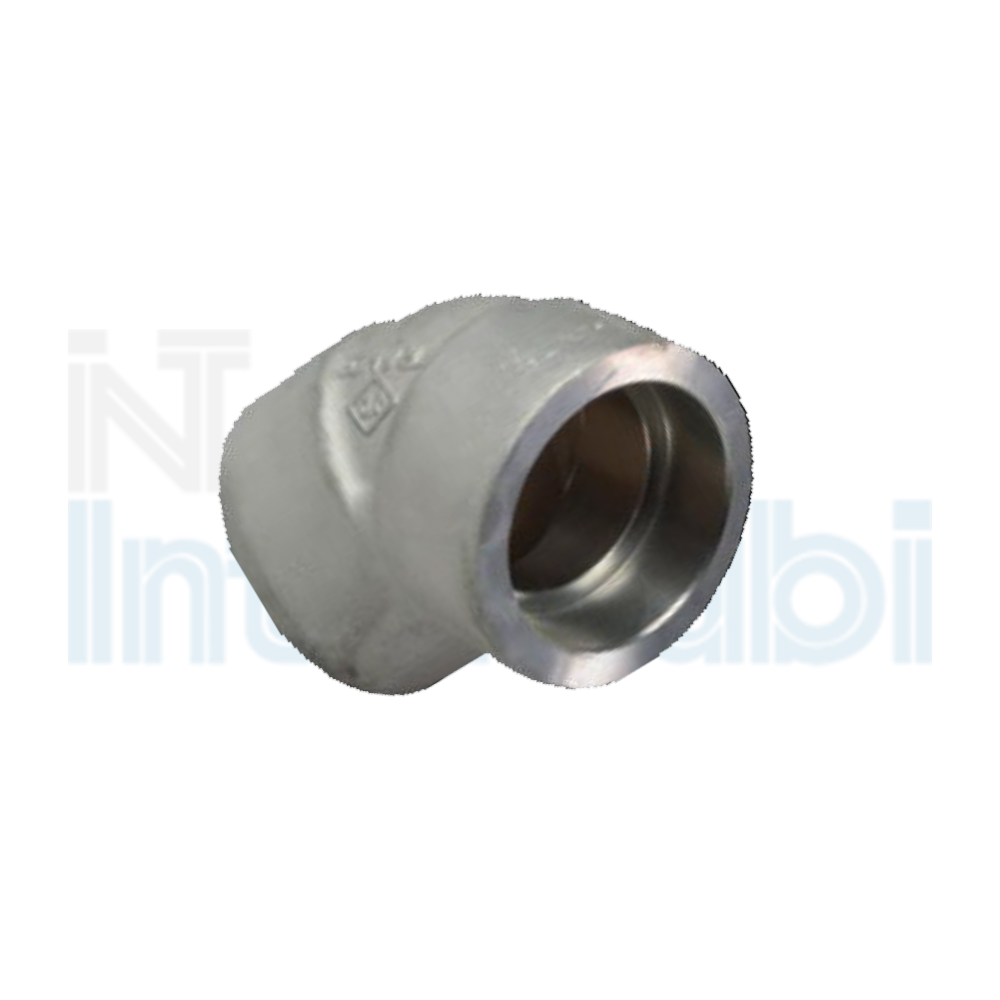

ANSI B16.11
3000 - 6000 LBS
ANSI B16.11
3000 - 6000 LBS
|
Nominal pipe size |
Center to bottom of socket A |
|||||||||
|
90° |
45° |
Tolerances ± |
||||||||
|
3000 |
6000 |
3000 |
6000 |
|||||||
|
mm |
inches |
mm |
inches |
mm |
inches |
mm |
inches |
mm |
inches |
|
|
1/4" |
11.0 |
0.44 |
13.5 |
0.53 |
8.0 |
0.31 |
8.0 |
0.31 |
1.0 |
0.03 |
|
3/8" |
13.5 |
0.53 |
15.5 |
0.62 |
7.5 |
0.31 |
11.5 |
0.44 |
1.5 |
0.06 |
|
1/2" |
15.5 |
0.62 |
19.5 |
0.75 |
11.5 |
0.44 |
12.5 |
0.50 |
1.5 |
0.06 |
|
3/4" |
19.5 |
0.75 |
22.5 |
0.88 |
12.5 |
0.50 |
14.5 |
0.56 |
1.5 |
0.06 |
|
1" |
22.0 |
0.88 |
27.0 |
1.06 |
14.0 |
0.56 |
17.0 |
0.69 |
2.0 |
0.08 |
|
1 1/4" |
27.0 |
1.06 |
32.0 |
1.25 |
17.0 |
0.69 |
21.0 |
0.81 |
2.0 |
0.08 |
|
1 1/2" |
32.0 |
1.25 |
38.0 |
1.50 |
21.0 |
0.81 |
25.0 |
1.00 |
2.0 |
0.08 |
|
2" |
38.0 |
1.50 |
41.0 |
1.62 |
25.0 |
1.00 |
29.0 |
1.12 |
2.0 |
0.08 |
|
2 1/2" |
41.5 |
1.62 |
29.0 |
1.12 |
2.5 |
0.10 |
||||
|
3" |
57.5 |
2.25 |
31.5 |
1.25 |
2.5 |
0.10 |
||||
|
4" |
66.5 |
2.62 |
41.5 |
1.62 |
2.5 |
0.10 |
||||
ANSI B16.11 3000 - 6000 LBS
ANSI B16.11 3000 - 6000 LBS
ANSI B16.11 3000 - 6000 LBS
