461

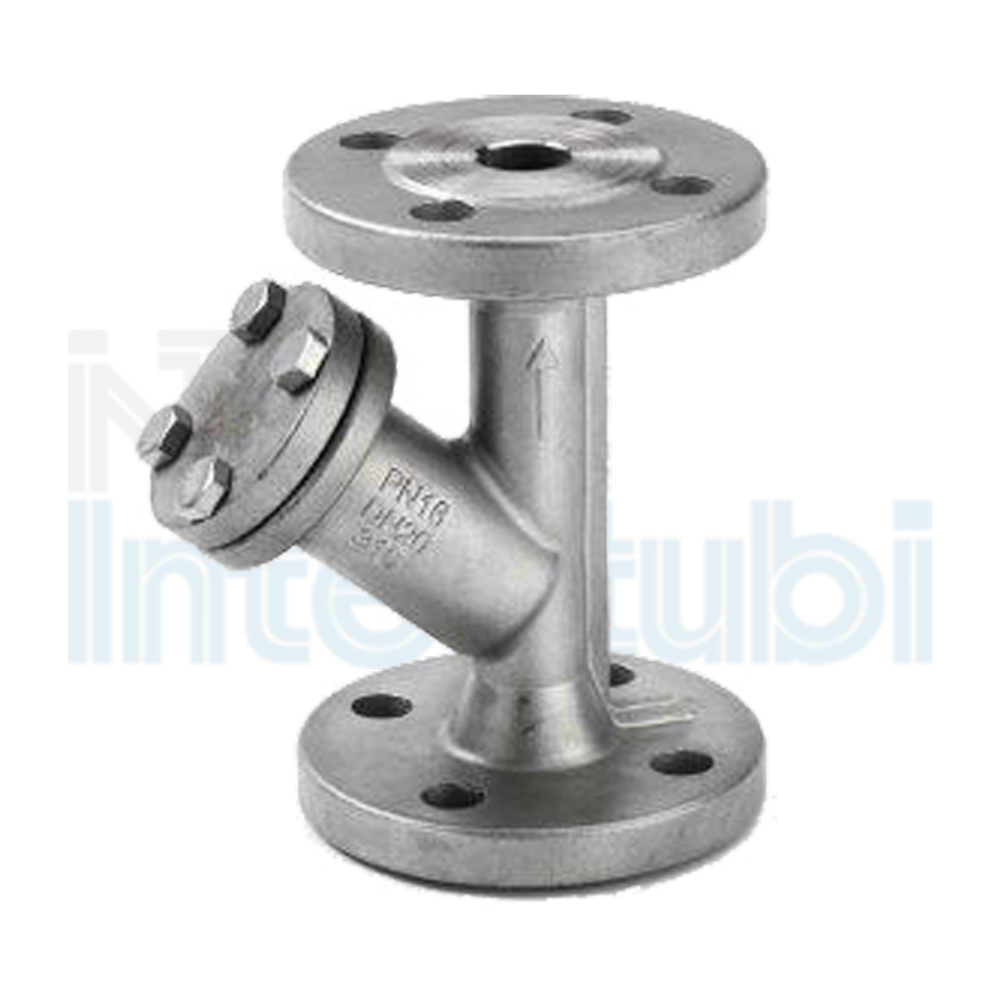

FLANGED ENDS Y STRAINER

Technical information
1. ”Y” Strainer
2. Flanged ends according to DIN 2501 PN 16
3. Face to Face according to DIN 3202 F1
4. Made of Stainless Steel CF8M
5. Max Working pressure 16 bar
6. Working temperature -30C° / + 240C°

461

FLANGED ENDS Y STRAINER

Technical information
1. ”Y” Strainer
2. Flanged ends according to DIN 2501 PN 16
3. Face to Face according to DIN 3202 F1
4. Made of Stainless Steel CF8M
5. Max Working pressure 16 bar
6. Working temperature -30C° / + 240C°

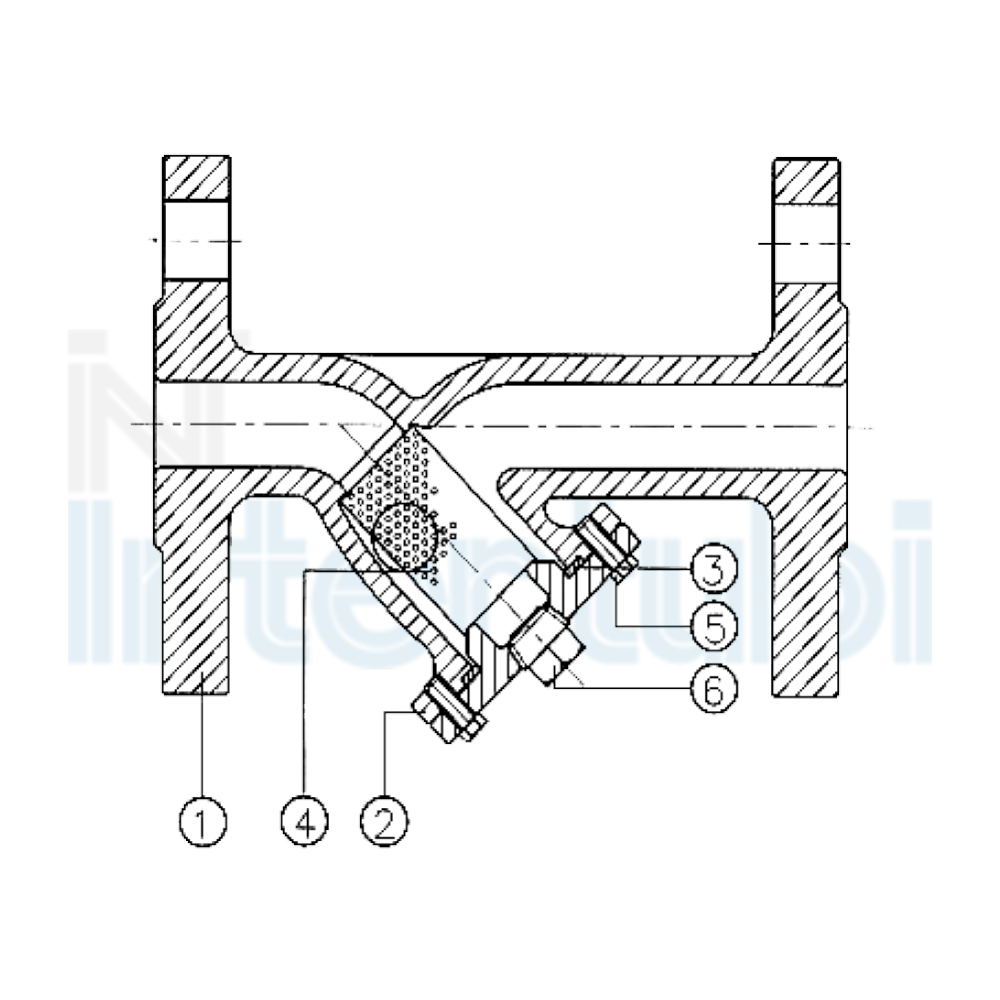

N°

Nome / Name

Materiale / Material

Finitura Superficiale / Surface Treatment

1

Corpo / Body

ACCIAIO INOX CF8M / SS 316 CF8M

SABBIATA / SHOT BLASTING + PICKLING

2

Coperchio / Cover

ACCIAIO INOX CF8M / SS 316 CF8M

SABBIATA / SHOT BLASTING + PICKLING

3

Guarnizione / Gasket

PTFE / PTFE



4

Filtro / Strainer

ACCIAIO INOX CF8M / SS 316 CF8M



5

Viti / Bolt

ACCIAIO INOX AISI 304 / SS AISI 304



6

Tappo / Plug

ACCIAIO INOX AISI 316 / SS AISI 316

TAPPO G1/2” Eccetto diametri da 1/2” a 1” / G1/2” Plug except for sizes 1/2”-1”

Diametri

Size

Codice

Code

PN

Dimensioni / Dimensions (mm)

Peso

Weight

(Kg)

A

D

L

P

d3

1/2”

IV4611/2

16

75

95

130

2

1

1.95

3/4”

IV4613/4

16

90

105

150

2

1

2.75

1”

IV4611

16

100

115

160

2

1

3.70

1 1/4”

IV46111/4

16

115

140

180

2

1

5.90

1 1/2”

IV46111/2

16

130

150

200

2

1

6.40

2”

IV4612

16

150

165

230

2

1

8.90

2 1/2”

IV46121/2

16

190

185

290

3.5

2

12.95

3”

IV4613

16

200

200

310

3.5

2

18.15

4”

IV4614

16

230

220

350

3.5

2

24.30

5”

IV4615

16

280

250

400

3.5

2

38.35

6”

IV4616

16

300

285

480

3.5

2

61.30

8”

IV4618

16

400

340

605

3.5

2

115.00


Misura

Size

Coppia

Maximum torque value

(Nm)

1 1/4" - 4"

50

5" - 6"

60

8" - 14"

80

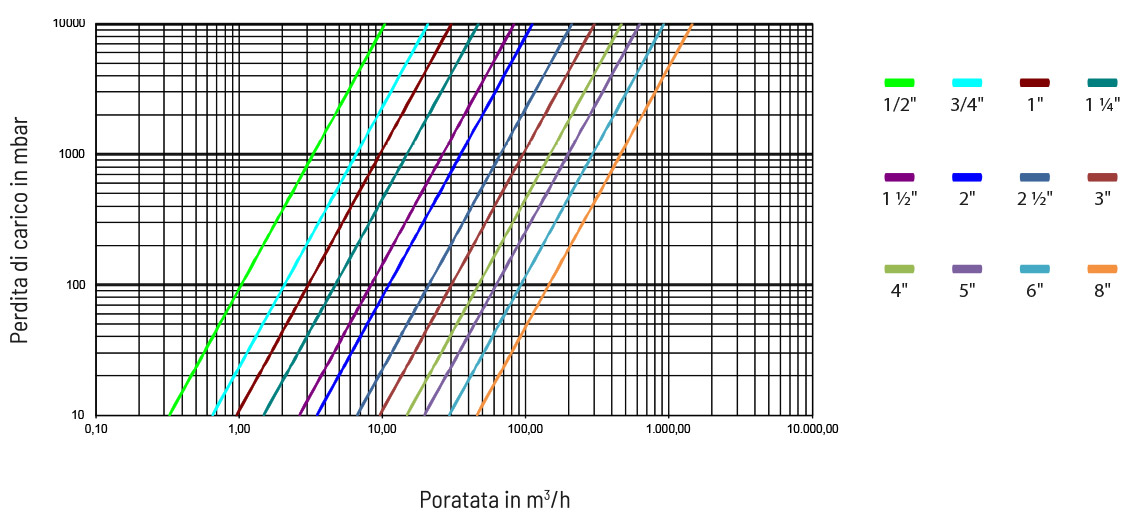

Kv = Flow rate of water in cubic meter per hour that will generate a pressure drop of 1 bar across the valve.

1/2"

3/4"

1"

1 1/4"

1 1/2"

2"

2 1/2"

3"

4"

5"

6"

8"

3,30

6,60

9,70

14,90

26,60

35,40

67,20

96,10

149,00

198,50

294,60

462,50
