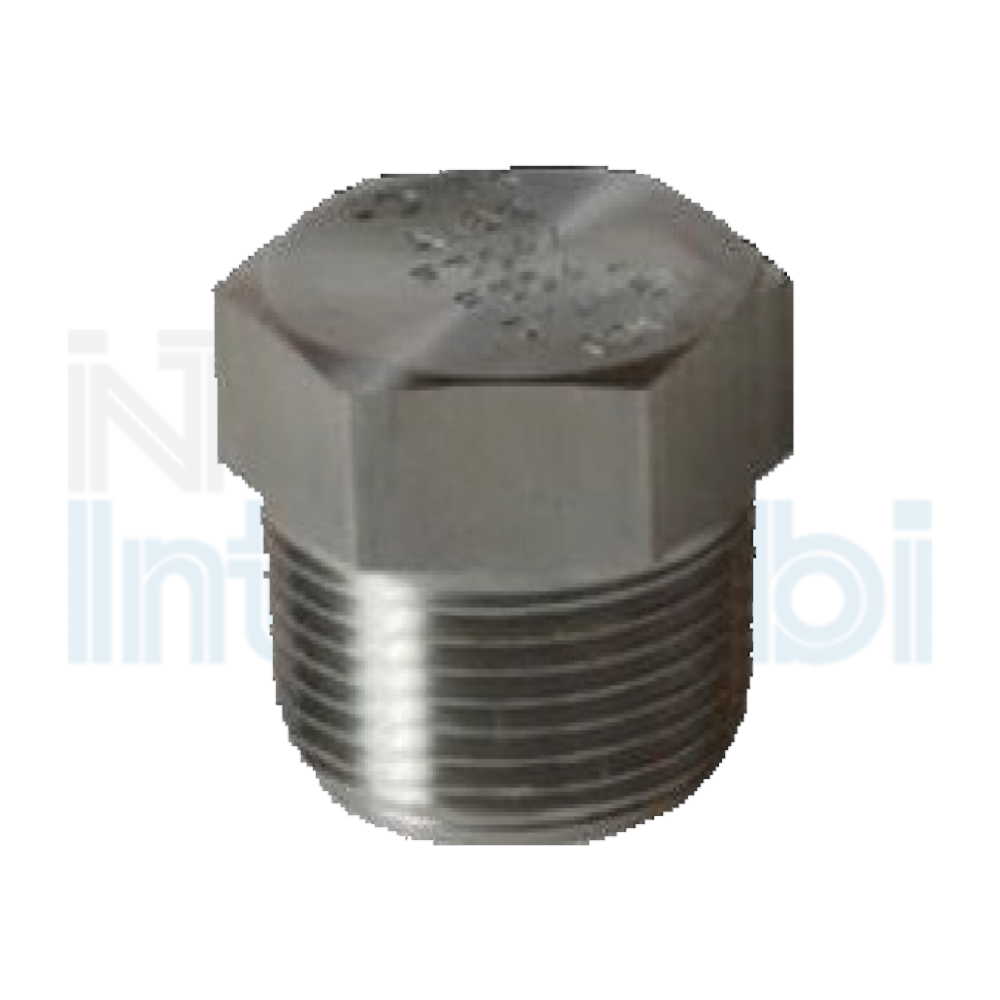

ANSI B16.11
3000 - 6000 LBS
ANSI B16.11
3000 - 6000 LBS
|
Diam. nominale Nominal pipe size |
3000 – 6000 |
|||||
|
A min. |
F nominal |
H min. |
||||
|
mm |
inches |
mm |
inches |
mm |
inches |
|
|
1/4" |
11 |
0.44 |
16.0 |
0.62 |
6 |
0.25 |
|
3/8" |
12.5 |
0.50 |
17.5 |
0.69 |
8 |
0.31 |
|
1/2" |
14.5 |
0.56 |
22.0 |
0.88 |
8 |
0.31 |
|
3/4" |
16.0 |
0.62 |
27.0 |
1.06 |
10 |
0.38 |
|
1" |
19.0 |
0.75 |
35.0 |
1.38 |
10 |
0.38 |
|
1 1/4" |
20.5 |
0.81 |
44.5 |
1.75 |
14 |
0.56 |
|
1 1/2" |
20.5 |
0.81 |
51.0 |
2.00 |
16 |
0.62 |
|
2" |
22.0 |
0.88 |
63.5 |
2.50 |
17 |
0.69 |
|
2 1/2" |
27.0 |
1.06 |
76.0 |
3.00 |
19 |
0.75 |
|
3" |
28.5 |
1.12 |
89.0 |
3.50 |
21 |
0.81 |
|
4" |
32.0 |
1.25 |
117.5 |
4.62 |
25 |
1.00 |
ANSI B16.11 3000 - 6000 LBS
ANSI B16.11 3000 - 6000 LBS
ANSI B16.11 3000 - 6000 LBS
