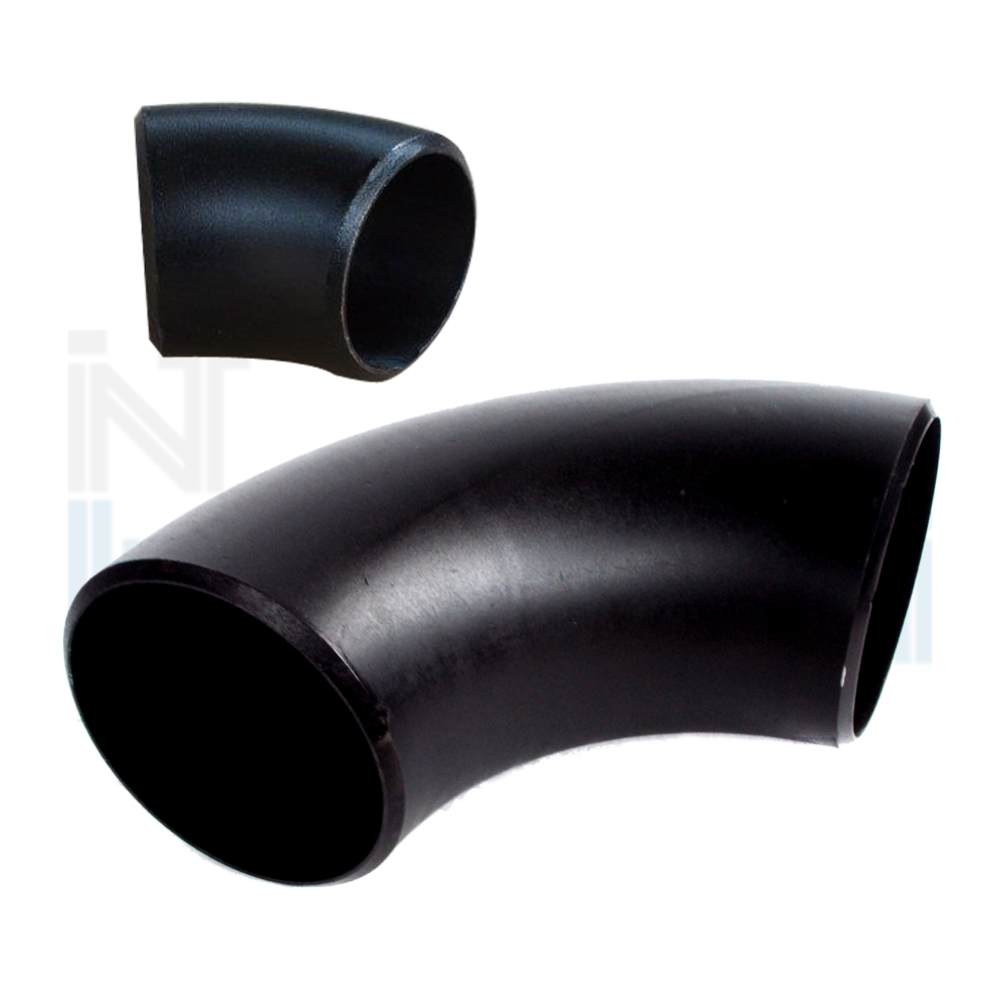

SEAMLESS ELBOWS
SEAMLESS ELBOWS
|
D.E. POLLICI D.E. INCHES |
Ø EST. MM X SPESS. MM OUTS. DIAM. MM X THICKN MM |
SCH |
CURVE / ELBOWS |
PESO TEORICO THEORICAL WEIGHT |
|
|
90° A |
45° B |
||||
|
1/2" |
21,3 x 2,77 |
Std |
38* |
16 |
0,08 |
|
21,3 x 3,73 |
Xs |
0,10 |
|||
|
21,3 x 4,75 |
160 |
0,12 |
|||
|
21,3 x 7,47 |
XXs |
0,15 |
|||
|
3/4" |
26,7 x 2,87 |
Std |
38* |
19 |
0,09 |
|
26,7 x 3,91 |
Xs |
0,11 |
|||
|
26,7 x 5,54 |
160 |
0,12 |
|||
|
26,7 x 7,82 |
XXs |
0,17 |
|||
|
1" |
33,4 x 3,38 |
Std |
38* |
22 |
0,15 |
|
33,4 x 4,55 |
Xs |
0,20 |
|||
|
33,4 x 6,35 |
160 |
0,26 |
|||
|
33,4 x 9,09 |
XXs |
0,33 |
|||
|
1 1/4" |
42,4 x 3,56 |
Std |
48 |
25 |
0,26 |
|
42,4 x 4,85 |
Xs |
0,34 |
|||
|
1 1/2" |
48,3 x 3,68 |
Std |
57 |
29 |
0,37 |
|
48,3 x 5,08 |
Xs |
0,49 |
|||
|
48,3 x 7,14 |
160 |
0,65 |
|||
|
48,3 x 10,16 |
XXs |
0,86 |
|||
|
2" |
60,3 x 3,91 |
Std |
76 |
35 |
0,65 |
|
60,3 x 5,54 |
Xs |
0,90 |
|||
|
60,3 x 8,71 |
160 |
1,33 |
|||
|
60,3 x 11,07 |
XXs |
1,61 |
|||
|
2 1/2" |
73,1 x 5,16 |
Std |
95 |
44 |
1,29 |
|
73,1 x 7,01 |
Xs |
1,71 |
|||
|
73,1 x 9,53 |
160 |
2,23 |
|||
|
73,1 x 14,02 |
XXs |
3,06 |
|||
|
3" |
88,9 x 3,96 |
20 |
114 |
51 |
1,50 |
|
88,9 x 5,49 |
Std |
2,03 |
|||
|
88,9 x 7,62 |
Xs |
2,74 |
|||
|
88,9 x 11,13 |
160 |
3,83 |
|||
|
88,9 x 15,24 |
XXs |
4,97 |
|||
|
3 1/2" |
101,6 x 5,74 |
Std |
133 |
57 |
2,85 |
|
101,6 x 8,08 |
Xs |
3,91 |
|||
|
4" |
114,3 x 4,37 |
20 |
152 |
64 |
2,92 |
|
114,3 x 6,02 |
Std |
3,85 |
|||
|
114,3 x 8,56 |
Xs |
5,35 |
|||
|
114,3 x 11,13 |
120 |
6,78 |
|||
|
114,3 x 13,49 |
160 |
8,03 |
|||
|
114,3 x 17,12 |
XXs |
9,82 |
|||
|
5" |
141,3 x 6,55 |
Std |
190 |
79 |
6,52 |
|
141,3 x 9,53 |
Xs |
9,26 |
|||
|
141,3 x 12,70 |
120 |
12,00 |
|||
|
141,3 x 15,88 |
160 |
14,70 |
|||
|
141,3 x 19,05 |
XXs |
17,20 |
|||
|
6" |
168,3 x 4,76 |
20 |
229 |
95 |
6,50 |
|
168,3 x 7,11 |
Std |
10,20 |
|||
|
168,3 x 10,97 |
Xs |
15,30 |
|||
|
168,3 x 14,27 |
120 |
19,50 |
|||
|
168,3 x 18,24 |
160 |
24,30 |
|||
|
168,3 x 21,95 |
XXs |
28,50 |
|||
|
8" |
219,1 x 6,35 |
20 |
305 |
127 |
16,00 |
|
219,1 x 7,04 |
30 |
17,60 |
|||
|
219,1 x 8,18 |
Std |
20,40 |
|||
|
219,1 x 10,31 |
60 |
25,40 |
|||
|
219,1 x 12,70 |
Xs |
30,90 |
|||
|
219,1 x **15,06 |
100 |
** 43,30 |
|||
|
219,1 x 18,24 |
120 |
43,30 |
|||
|
219,1 x **20,62 |
140 |
** 53,30 |
|||
|
219,1 x **22,23 |
XXs |
** 53,30 |
|||
|
219,1 x 23,01 |
160 |
53,30 |
|||
|
10" |
273,0 x 6,35 |
20 |
381 |
159 |
24,99 |
|
273,0 x 7,80 |
30 |
30,53 |
|||
|
273,0 x 9,27 |
Std |
36,08 |
|||
|
273,0 x 12,70 |
Xs |
48,79 |
|||
|
273,0 x 15,06 |
80 |
57,44 |
|||
|
273,0 x **18,24 |
100 |
**79,60 |
|||
|
273,0 x 21,41 |
120 |
79,60 |
|||
|
273,0 x **25,40 |
140/XXs |
**103,10 |
|||
|
273,0 x 28,58 |
160 |
103,10 |
|||
|
12" |
323,9 x 6,35 |
20 |
457 |
190 |
35,70 |
|
323,9 x 8,38 |
30 |
46,80 |
|||
|
323,9 x 9,53 |
Std |
53,00 |
|||
|
323,9 x 10,31 |
40 |
57,30 |
|||
|
323,9 x 12,70 |
Xs |
70,00 |
|||
|
323,9 x 14,27 |
60 |
78,20 |
|||
|
323,9 x 17,45 |
80 |
94,80 |
|||
|
323,9 x **21,41 |
100 |
**134,00 |
|||
|
323,9 x 25,40 |
120/XXs |
134,00 |
|||
|
323,9 x **28,58 |
140 |
**171,00 |
|||
|
323,9 x 33,32 |
160 |
171,00 |
|||
|
14" |
355,6 x 6,35 |
10 |
533 |
222 |
45,80 |
|
355,6 x 7,92 |
20 |
56,90 |
|||
|
355,6 x 9,53 |
Std |
68,10 |
|||
|
355,6 x **11,13 |
40 |
**90,00 |
|||
|
355,6 x 12,70 |
Xs |
90,00 |
|||
|
14" |
355,6 x 19,05 |
80 |
533 |
222 |
132,00 |
|
355,6 x **23,80 |
100 |
**187,91 |
|||
|
355,6 x 27,76 |
120 |
187,91 |
|||
|
355,6 x **31,75 |
140 |
**235,86 |
|||
|
355,6 x 35,71 |
160 |
235,86 |
|||
|
16" |
406,4 x **6,35 |
10 |
610 |
254 |
74,58 |
|
406,4 x 7,92 |
20 |
74,58 |
|||
|
406,4 x 9,53 |
Std |
89,20 |
|||
|
406,4 x 12,70 |
Xs |
118,00 |
|||
|
406,4 x 16,66 |
60 |
153,00 |
|||
|
406,4 x 21,41 |
80 |
195,00 |
|||
|
406,4 x **26,19 |
100 |
274,51 |
|||
|
406,4 x 30,94 |
120 |
274,51 |
|||
|
406,4 x **36,53 |
140 |
350,00 |
|||
|
406,4 x 40,46 |
160 |
350,00 |
|||
|
18" |
457,0 x **6,35 |
10 |
686 |
286 |
** 113,00 |
|
457,0 x **7,92 |
20 |
** 113,00 |
|||
|
457,0 x 9,53 |
Std |
113,00 |
|||
|
457,0 x **11,13 |
30 |
** 150,00 |
|||
|
457,0 x 12,70 |
Xs |
150,00 |
|||
|
457,0 x 14,27 |
40 |
168,00 |
|||
|
457,0 x 19,05 |
60 |
197,15 |
|||
|
457,0 x 23,80 |
80 |
243,63 |
|||
|
20" |
508,0 x **6,35 |
10 |
762 |
318 |
** 140,00 |
|
508,0 x 9,53 |
Std |
140,00 |
|||
|
508,0 x 12,70 |
Xs |
186,00 |
|||
|
508,0 x 15,06 |
40 |
219,00 |
|||
|
508,0 x **20,62 |
60 |
** 372,00 |
|||
|
508,0 x 26,19 |
80 |
372,00 |
|||
|
22" |
558,8 x 9,53 |
Std |
838 |
343 |
170,00 |
|
558,8 x 12,70 |
Xs |
225,00 |
|||
|
24" |
609,6 x **6,35 |
10 |
914 |
381 |
** 202,00 |
|
609,6 x 9,53 |
Std |
202,00 |
|||
|
609,6 x 12,70 |
Xs |
268,00 |
|||
|
609,6 x **14,27 |
30 |
** 366,00 |
|||
|
609,6 x 17,48 |
40 |
366,00 |
|||
|
609,6 x 24,59 |
60 |
634,00 |
|||
|
609,6 x 30,94 |
80 |
634,00 |
|||
|
28" |
711,0 x 7,92 |
10 |
1067 |
438 |
230,00 |
|
711,0 x 9,53 |
Std |
276,00 |
|||
|
711,0 x 12,70 |
Xs |
366,00 |
|||
|
30" |
762,0 x 9,53 |
Std |
1143 |
470 |
317,00 |
|
762,0 x 12,70 |
Xs |
421,00 |
|||
|
32" |
812,8 x 9,53 |
Std |
1219 |
502 |
361,00 |
|
812,8 x 12,70 |
Xs |
472,00 |
|||
ASME B16.9
SEAMLESS ELBOWS ASME B16.9
ASME B16.9
