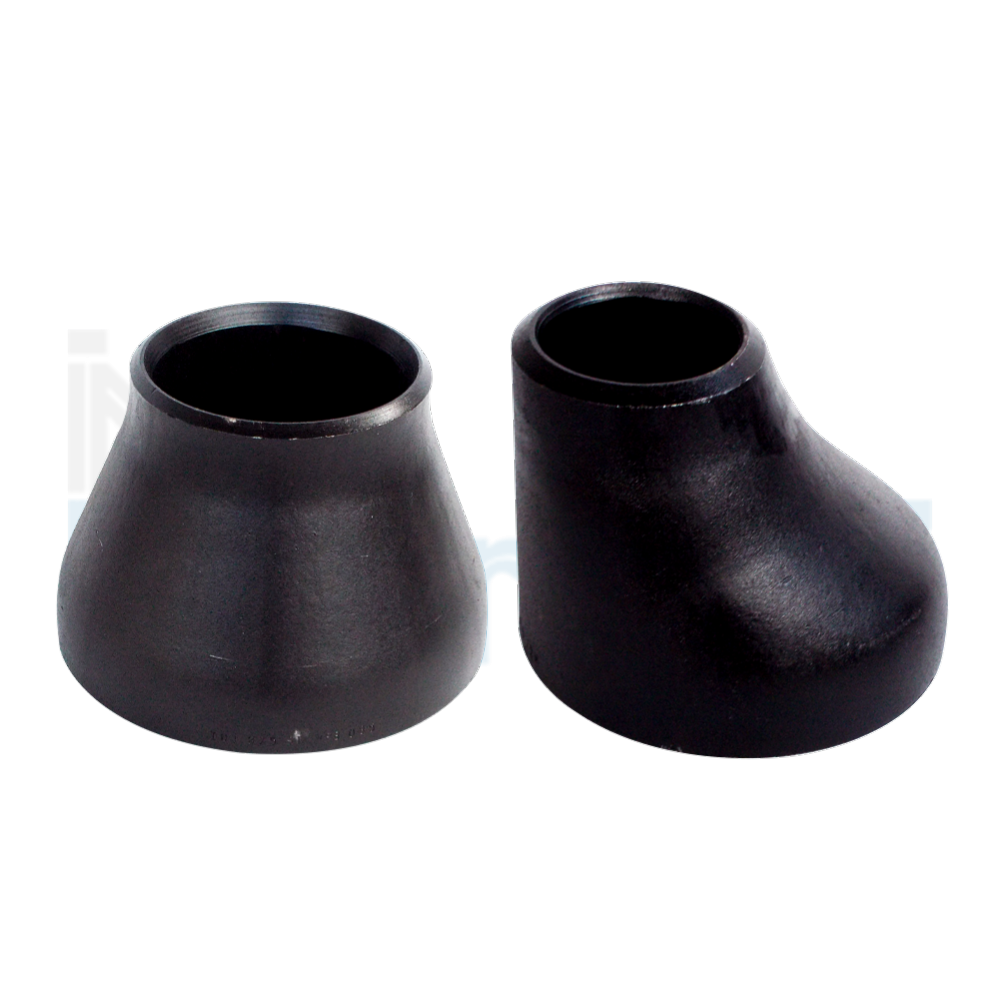

Riduzioni concentriche ed eccentriche senza saldatura

SEAMLESS CONCENTRIC AND ECCENTRIC REDUCERS

ASME B16.9

Riduzioni concentriche ed eccentriche senza saldatura

SEAMLESS CONCENTRIC AND ECCENTRIC REDUCERS

ASME B16.9

D.E. Pollici

D.E. Inches

Ø Est. Mm X Spess. Mm

Outs. Diam. Mm X Thickn Mm

Sp X Sp. Mm

Thck X Thck Mm

SCH

H

Peso Teorico

Theorical Weight Kg

1" x 3/4"

33,40 x 26,70

3,38 x 2,87

Std

51

0,14

33,40 x 26,70

4,55 x 3,91

Xs

0,17

1 1/4" x 3/4"

42,60 x 26,70

3,56 x 2,87

Std

0,20

42,60 x 26,70

4,85 x 3,91

Xs

0,23

1 1/4" x 1"

42,60 x 33,40

3,56 x 3,38

Std

0,20

42,60 x 33,40

4,85 x 4,55

Xs

0,24

1 1/2" x 3/4"

48,30 x 26,70

3,68 x 2,87

Std

64

0,22

48,30 x 26,70

5,08 x 3,91

Xs

0,30

1 1/2" x 1"

48,30 x 33,40

3,68 x 3,38

Std

0,24

48,30 x 33,40

5,08 x 4,55

Xs

0,31

1 1/2" x 1 1/4"

48,30 x 42,40

3,68 x 3,56

Std

0,26

48,30 x 42,40

5,08 x 4,85

Xs

0,33

2" x 1"

60,30 x 33,40

3,91 x 3,38

Std

76

0,37

60,30 x 33,40

5,54 x 4,55

Xs

0,45

2" x 1 1/4"

60,30 x 42,40

3,91 x 3,56

Std

0,39

60,30 x 42,40

5,54 x 4,85

Xs

0,53

2" x 1 1/2"

60,30 x 48,30

3,91 x 3,68

Std

0,41

60,30 x 48,30

5,54 x 5,08

Xs

0,54

2 1/2" x 1 1/4"

73,10 x 42,40

5,16 x 3,56

Std

0,39

73,10 x 42,40

7,01 x 4,85

Xs

0,53

2 1/2" x 1 1/2"

73,10 x 48,30

5,16 x 3,66

Std

89

0,68

73,10 x 48,30

7,01 x 5,08

Xs

0,86

2 1/2" x 2"

73,10 x 60,30

5,16 x 3,91

Std

0,73

73,10 x 60,30

7,01 x 5,54

Xs

0,94

3" x 1"

88,90 x 33,40

5,49 x 3,38

Std

0,86

88,90 x 33,40

7,62 x 4,55

Xs

0,99

3" x 1 1/2"

88,90 x 48,30

5,49 x 3,68

Std

0,86

88,90 x 48,30

7,62 x 5,08

Xs

0,99

3" x 2"

88,90 x 60,30

5,49 x 3,91

Std

0,91

88,90 x 60,30

7,62 x 5,54

Xs

1,18

3" x 2 1/2"

88,90 x 73,10

5,49 x 5,16

Std

89

0,98

88,90 x 73,10

7,62 x 7,01

Xs

1,29

4" x 2"

114,30 x 60,30

6,02 x 3,91

Std

102

1,44

114,30 x 60,30

8,56 x 5,54

Xs

1,78

4" x 2 1/2"

114,30 x 73,10

6,02 x 5,16

Std



1,62

114,30 x 73,10

8,56 x 7,01

Xs

1,90

4" x 3"

114,30 x 88,90

6,02 x 5,49

Std

1,59

114,30 x 88,90

8,56 x 76,62

Xs

2,13

5" x 3"

141,30 x 88,90

6,55 x 5,49

Std

127

2,60

141,30 x 88,90

9,53 x 7,62

Xs

3,55

5" x 4"

141,30 x 114,30

6,55 x 6,02

Std

2,72

141,30 x 114,30

9,53 x 8,56

Xs

3,78

6" x 3"

168,30 x 88,90

7,11 x 5,49

Std

140

3,63

168,30 x 88,90

10,97 x 7,62

Xs

5,04

6" x 4"

168,30 x 114,30

7,11 x 6,02

Std

3,72

168,30 x 114,30

10,97 x 8,56

Xs

5,45

6" x 5"

168,30 x 141,30

7,11 x 6,55

Std

3,93

168,30 x 141,30

10,97 x 9,53

Xs

5,72

8" x 4"

219,10 x 114,30

8,18 x 6,02

Std

152

5,95

219,10 x 114,30

12,70 x 8,56

Xs

8,44

8" x 5"

219,10 x 141,30

8,18 x 6,55

Std

4,08

219,10 x 141,30

12,70 x 9,53

Xs

8,88

8" x 6"

219,10 x168,30

8,18 x 7,11

Std

6,31

219,10 x168,30

12,70 x 10,97

Xs

9,26

10" x 5"

273,00 x 141,30

9,27 x 6,55

Std

178

9,90

273,00 x 141,30

12,70 x 9,53

Xs

13,00

10" x 6"

273,00 x 168,30

9,27 x 7,11

Std

10,10

273,00 x 168,30

12,70 x 12,97

Xs

13,50

10" x 8"

273,00 x 219,10

9,27 x 8,18

Std



10,50

273,00 x 219,10

12,70 x 12,70

Xs

14,20

12" x 6"

323,90 x 168,30

9,53 x7,11

Std

203

14,10

323,90 x 168,30

12,70 x 10,97

Xs

18,40

12" x 8"

323,90 x 219,10

9,53 x 8,18

Std

14,60

323,90 x 219,10

12,70 x 12,70

Xs

17,00

12" x 10"

323,90 x 273,00

9,53 x 9,27

Std

15,20

323,90 x 273,00

12,70 x 12,70

Xs

19,80

14" x 8"

355,60 x 219,10

9,53 x 8,18

Std

330

26,00

355,60 x 219,10

12,70 x 12,70

Xs

34,90

14" x 10"

355,60 x 273,00

9,53 x 9,27

Std

27,40

355,60 x 273,00

12,70 x 12,70

Xs

36,10

14" x 12"

355,60 x 323,90

9,53 x 9,53

Std

28,80

355,60 x 323,90

12,70 x 12,70

Xs

37,70

16" x 10"

406,40 x 273,00

9,53 x 9,27

Std

356

33,10

406,40 x 273,00

12,70 x 12,70

Xs

43,70

16" x 12"

406,40 x 323,90

9,53 x 9,53

Std

34,30

406,40 x 323,90

12,70 x 12,70

Xs

45,00

16" x 14"

406,40 x 355,60

9,53 x 9,53

Std

35,20

406,40 x 355,60

12,70 x 12,70

Xs

46,30

18" x 12"

457,00 x 323,90

9,53 x 9,53

Std

381

40,50

457,00 x 323,90

12,70 x 12,70

Xs

53,60

18" x 14"

457,00 x 355,60

9,53 x 9,53

Std

41,30

457,00 x 355,60

12,70 x 12,70

Xs

54,50

18" x 16"

457,00 x 406,40

9,53 x 9,53

Std

42,70

457,00 x 406,40

12,70 x 12,70

Xs

55,80

20" x 12"

508,00 x 323,90

9,53 x 9,53

Std

508

60,80

508,00 x 323,90

12,70 x 12,70

Xs

79,90

20" x 14"

508,00 x 355,60

9,53 x 9,53

Std

61,30

508,00 x 355,60

12,70 x 12,70

Xs

81,30

20" x 16"

508,00 x 406,40

9,53 x 9,53

Std

62,60

508,00 x 406,40

12,70 x 12,70

Xs

82,60

20" x 18"

508,00 x 457,00

9,53 x 9,53

Std

64,50

508,00 x 457,00

12,70 x 12,70

Xs

84,40

24" x 14"

609,60 x 355,60

9,53 x 9,53

Std

508

72,60

609,60 x 355,60

12,70 x 12,70

Xs

95,80

24" x 16"

609,60 x 406,40

9,53 x 9,53

Std

72,60

609,60 x 406,40

12,70 x 12,70

Xs

95,80

24" x 18"

609,60 x 457,00

9,53 x 9,53

Std

74,00

609,60 x 457,00

12,70 x 12,70

Xs

97,60

24" x 20"

609,60 x 508,00

9,53 x 9,53

Std

75,80

609,60 x 508,00

12,70 x 12,70

Xs

99,90
