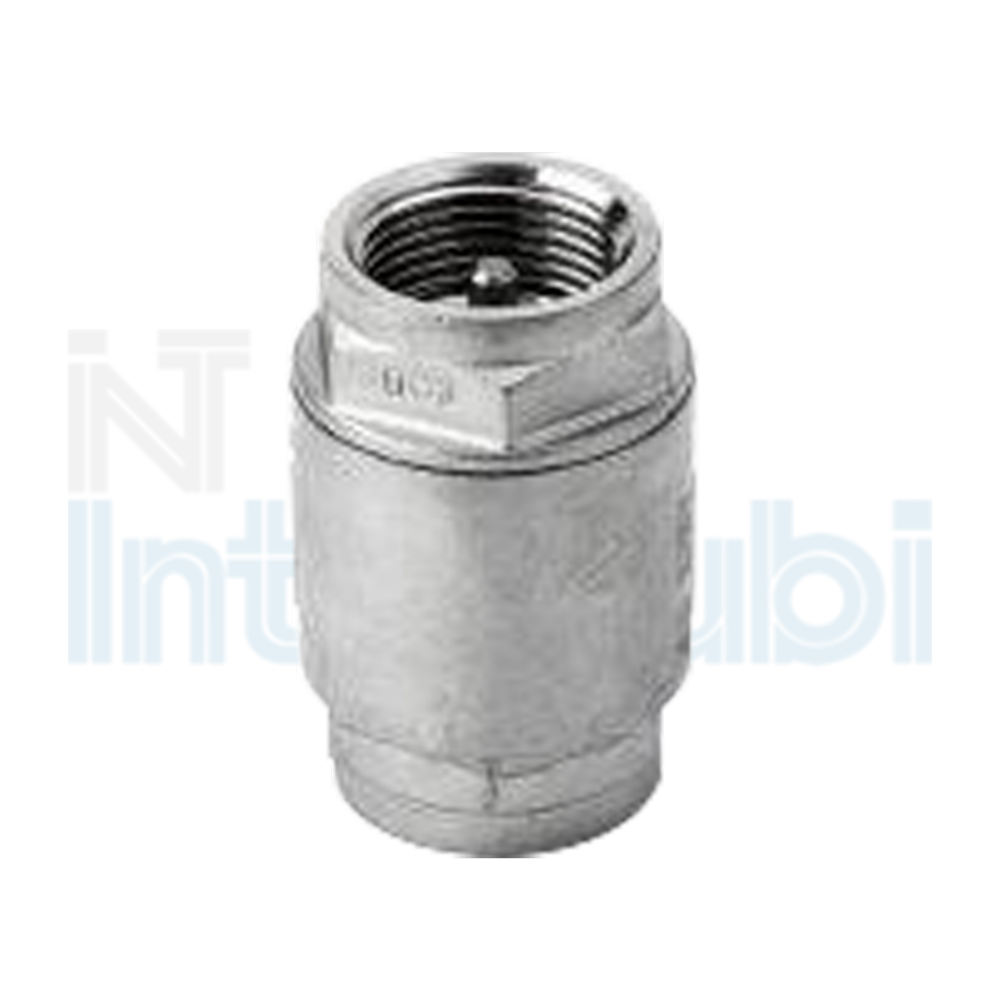

Technical information
1. Spring check valve
2. Made by AISI 316 (CF8M)
3. Seat PTFE
4. Thread ends EN 10226-1 (EX ISO 7-1 e DIN 2999)
5. Max working pressure 16Kg/cm2
6. Working temperarure -25C° / + 180 C°
7. Minimum opening pressure 0,13 bar
APPLICATIONS: WATER, ACIDS AND COMPATIBLE SOLVENT
Technical information
1. Spring check valve
2. Made by AISI 316 (CF8M)
3. Seat PTFE
4. Thread ends EN 10226-1 (EX ISO 7-1 e DIN 2999)
5. Max working pressure 16Kg/cm2
6. Working temperarure -25C° / + 180 C°
7. Minimum opening pressure 0,13 bar
APPLICATIONS: WATER, ACIDS AND COMPATIBLE SOLVENT

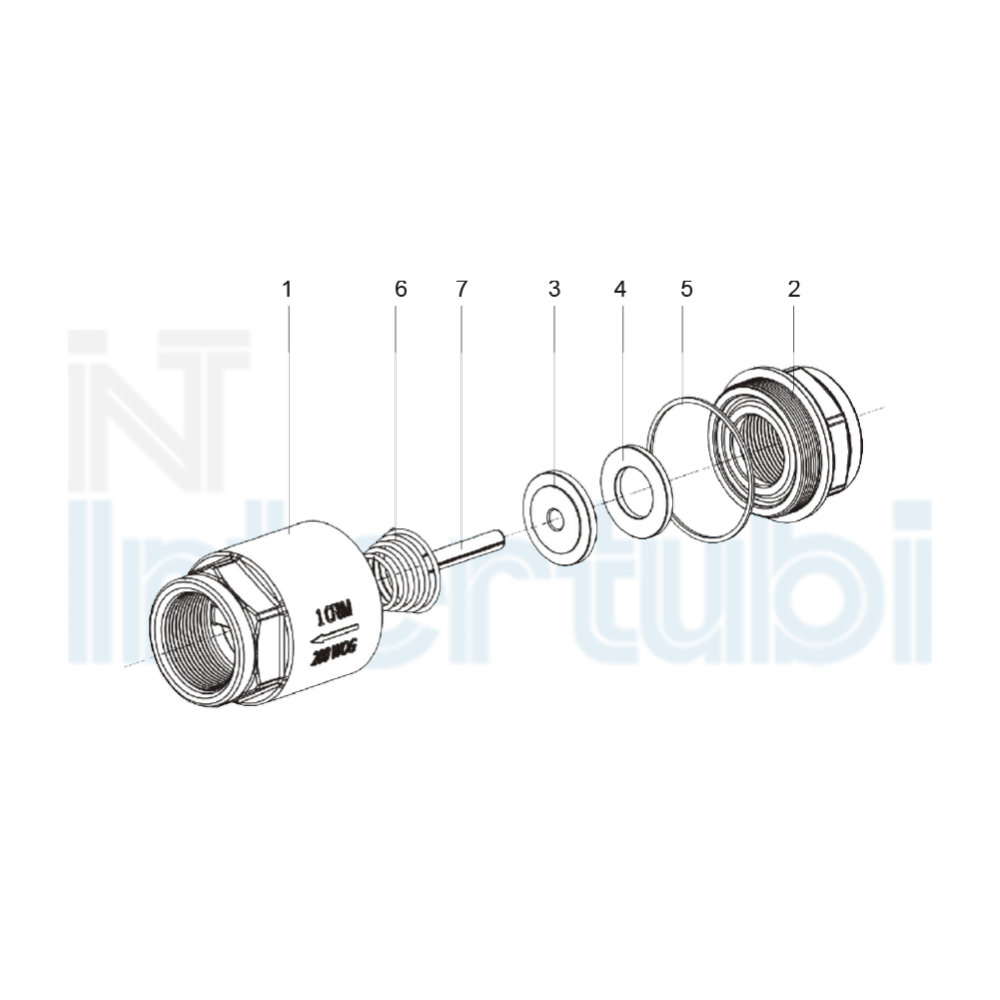

N° |
NOME | NAME |
MATERIALI | MATERIAL |
1 |
Corpo / Body |
ACCIAIO INOX CF8M / SS 316 CF8M |
2 |
Coperchio / Cover |
ACCIAIO INOX CF8M / SS 316 CF8M |
3 |
Disco / Disc |
ACCIAIO INOX AISI 316 / SS AISI 316 |
4 |
Tenuta / Seat |
PTFE / PTFE |
5 |
Guarnizione Corpo Coperchio / Body Gasket |
PTFE / PTFE |
6 |
Molla / Spring |
ACCIAIO INOX AISI 302 / 304 |
7 |
Stelo / Stem |
ACCIAIO INOX AISI 316 / SS AISI 316 |
Diametri Size |
Codice Code |

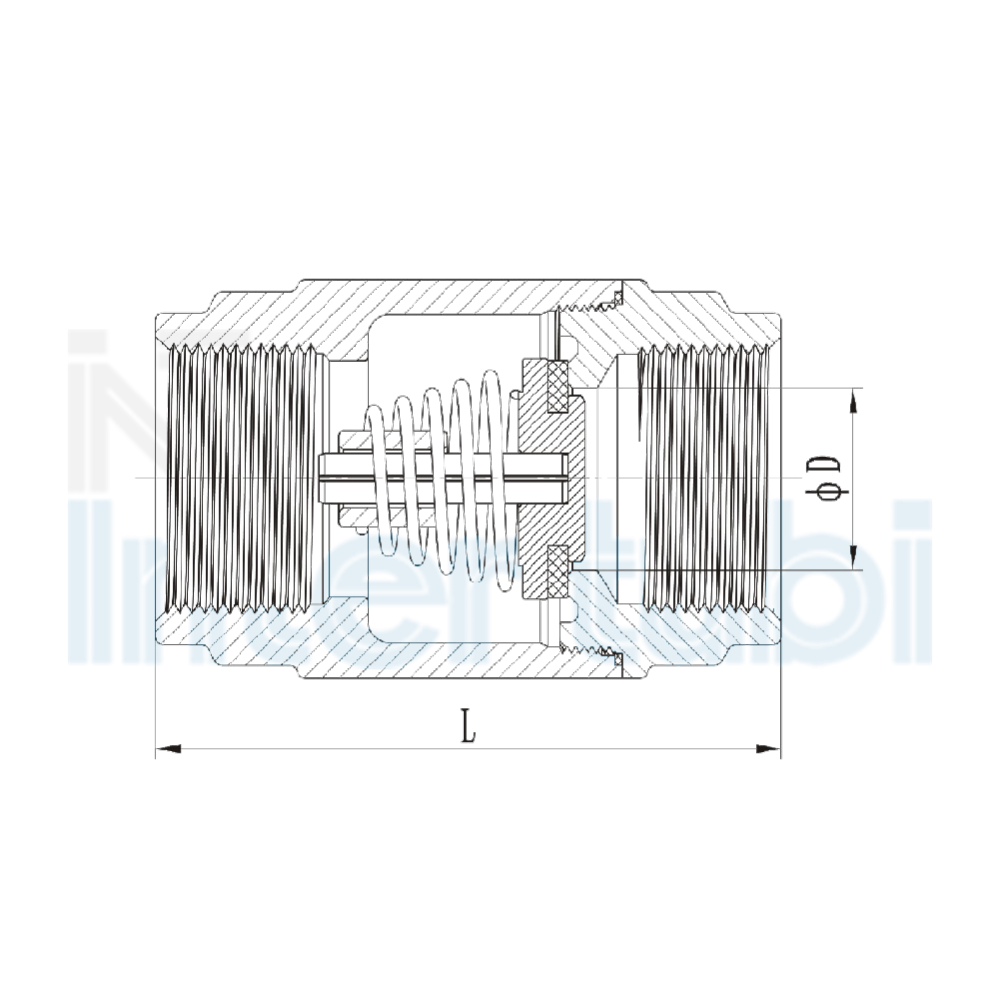

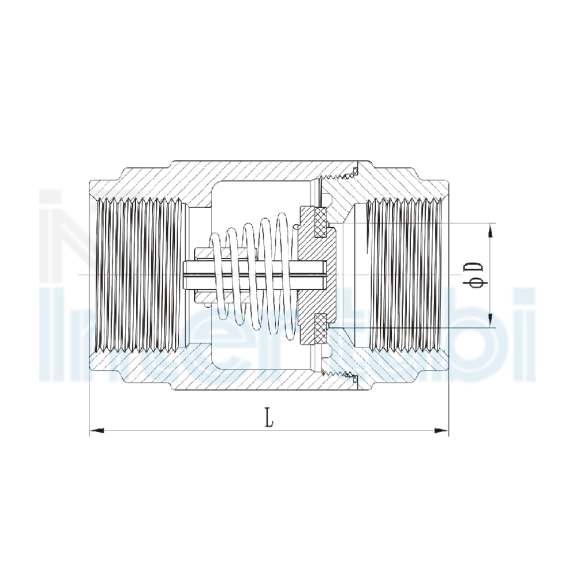

Dimensioni / Dimensions (mm) |
Peso Weight (Kg) |
||
D |
B |
L |
|||
3/8” |
IV9013/8 |
10 |
30 |
54 |
0.15 |
1/2” |
IV9011/2 |
15 |
34.5 |
57 |
0.17 |
3/4” |
IV9013/4 |
20 |
41.5 |
64 |
0.29 |
1” |
IV9011 |
25 |
48 |
75 |
0.44 |
11/4” |
IV90111/4 |
32 |
60.5 |
82 |
0.67 |
11/2” |
IV90111/2 |
40 |
71 |
93 |
1.0 |
2” |
IV9012 |
50 |
87 |
100 |
1.61 |
